Maremma Villa
Location: Magliano, Toscana, Grosseto, Italy
Architect: Studio Ponsi
Client: Private
Material: concrete & wood
Design date: 2013
Completion date: 2015
Built area: 200m2
Studio: Studio Ponsi
Project architects: Andrea Ponsi, Luca Ponsi
Design Team: Federico Frittelli, Davide Nigi, Beth Bevan
General Contractor: Tenebrosi snc
Structural Engineer: Ing. Renato Terziani
Mechanical Engineer: Ing. Matteo Madesani
HVAC Systems: Effie snc
Steelwork: Luca Albertazzi
Cabinet makers: Bocini&Bocini srl
Photographer: Studio Ponsi, Mario Ciampi, Ulisse Donnini
Story:
Text provided by the architects:

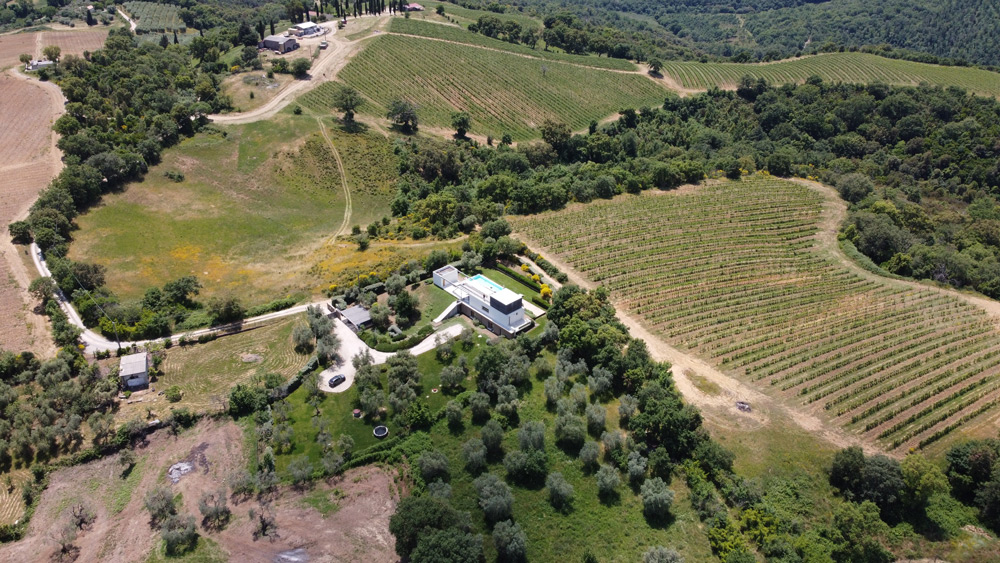

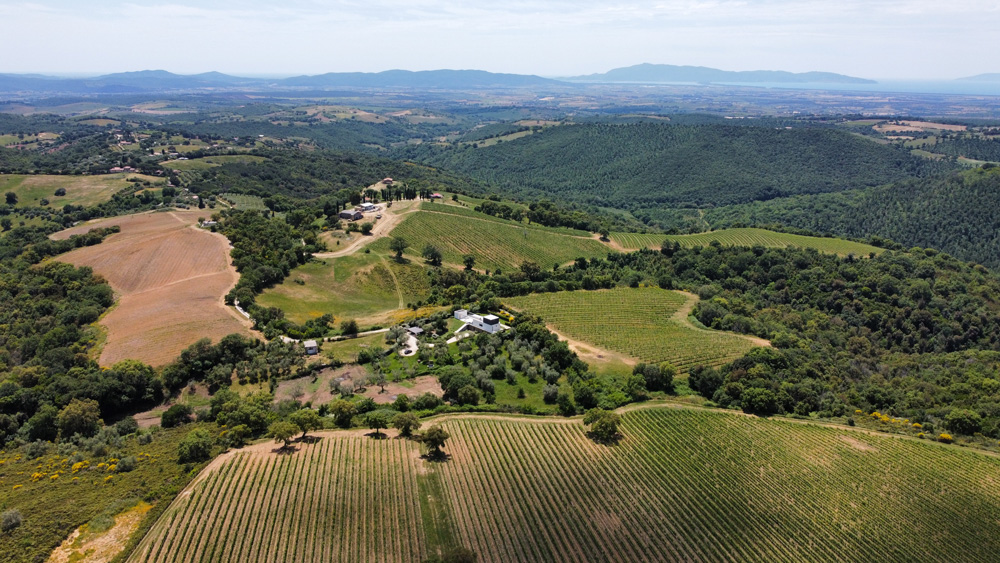

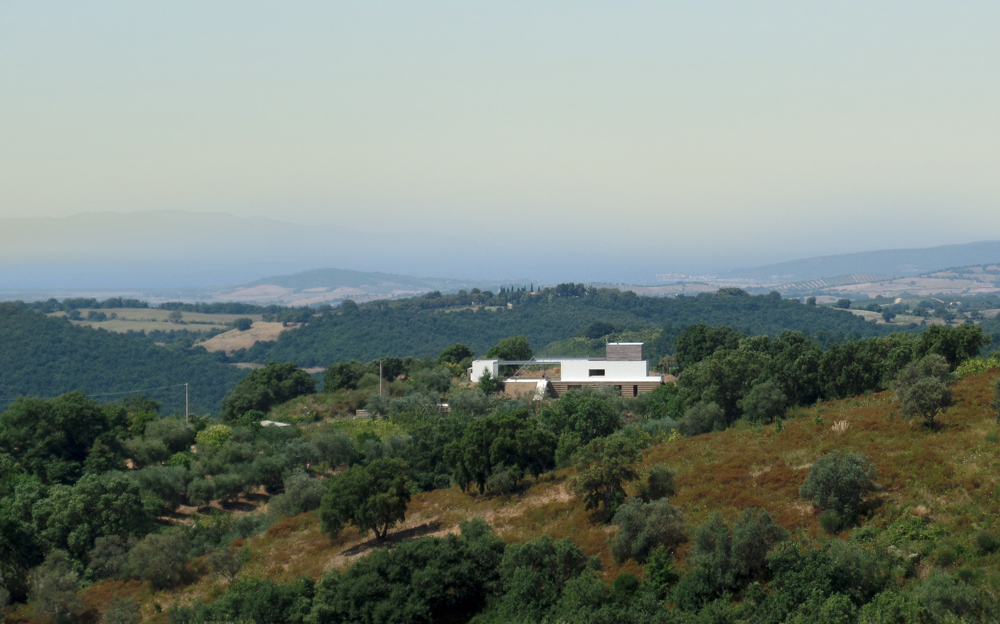

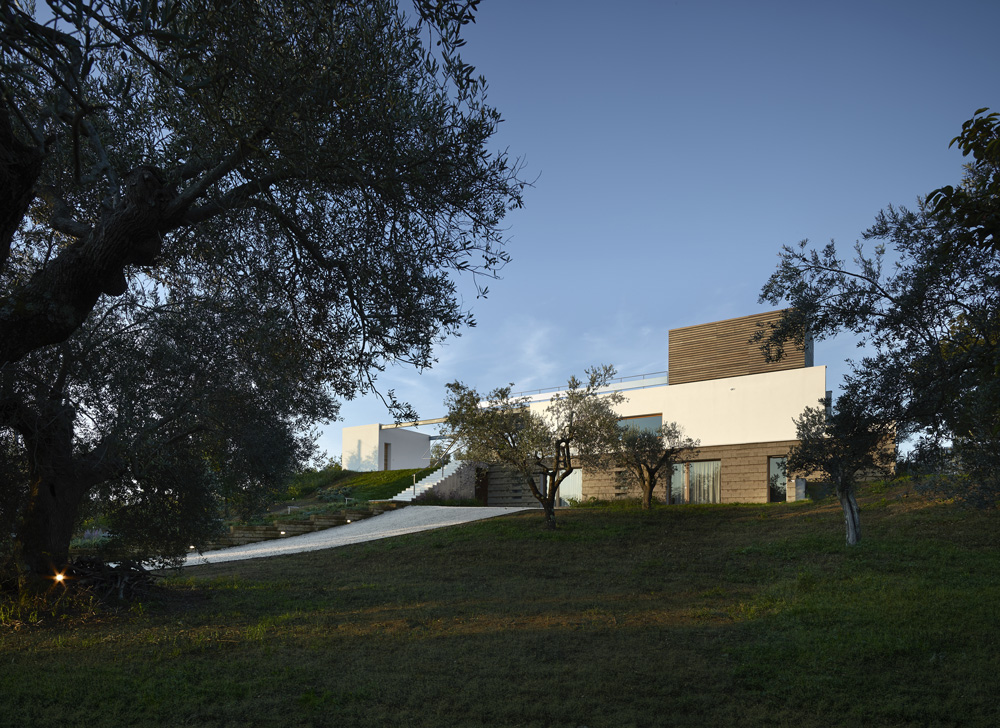

The building is set on a hill surrounded by olive trees and vineyards near the ancient village of Pereta, in the Tuscan Maremma countryside. The landscape around it is characterized by gently rolling hills sloping down towards the sea. The view from the house sweeps over Monte Argentario and the islands of the Tuscan archipelago.

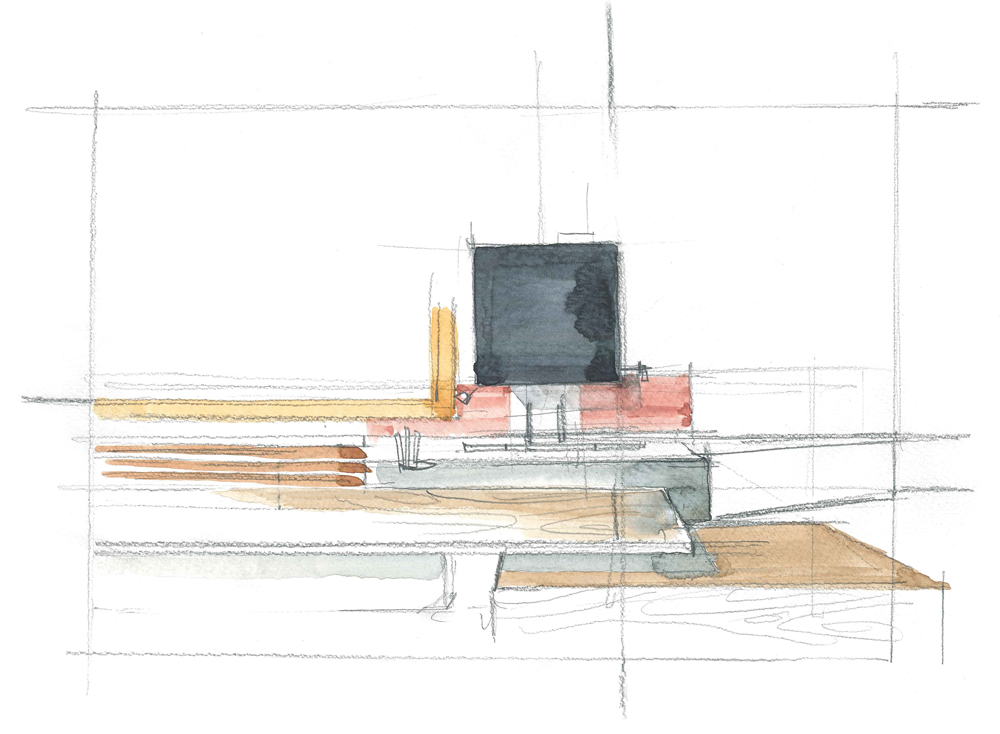

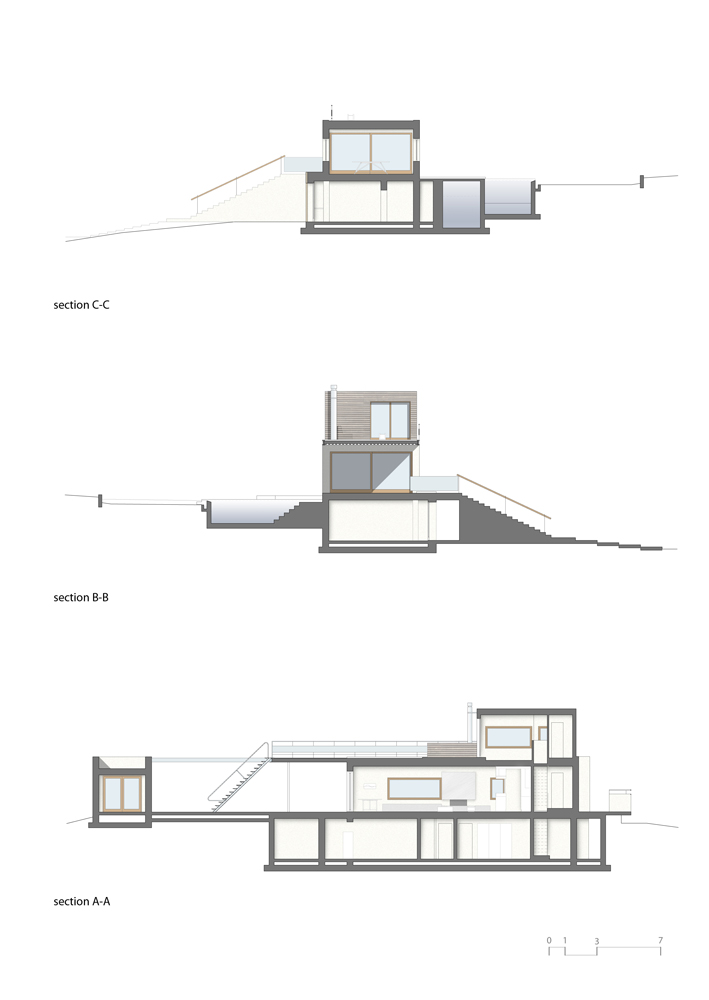

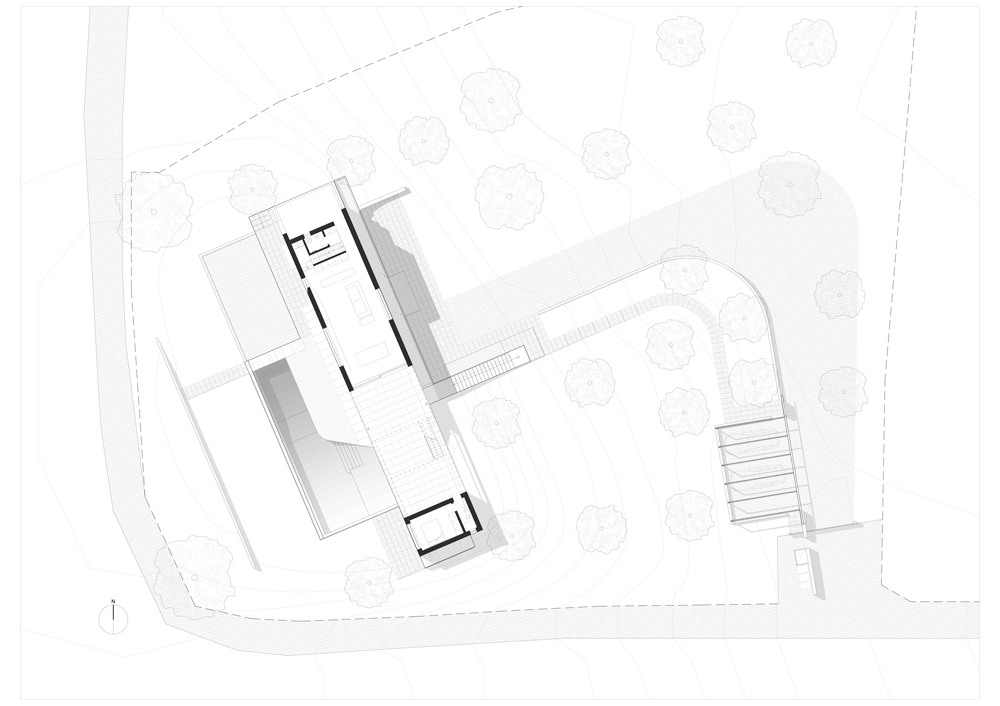

The house is laid out as three layers of volumes stretching horizontally along the north-south axis. The linear shape of the three floors echoes the dominating horizontality of the land. The arrangement of the volumes corresponds to the distribution of activity in the house as well as referring to a metaphorical stratification of meanings.

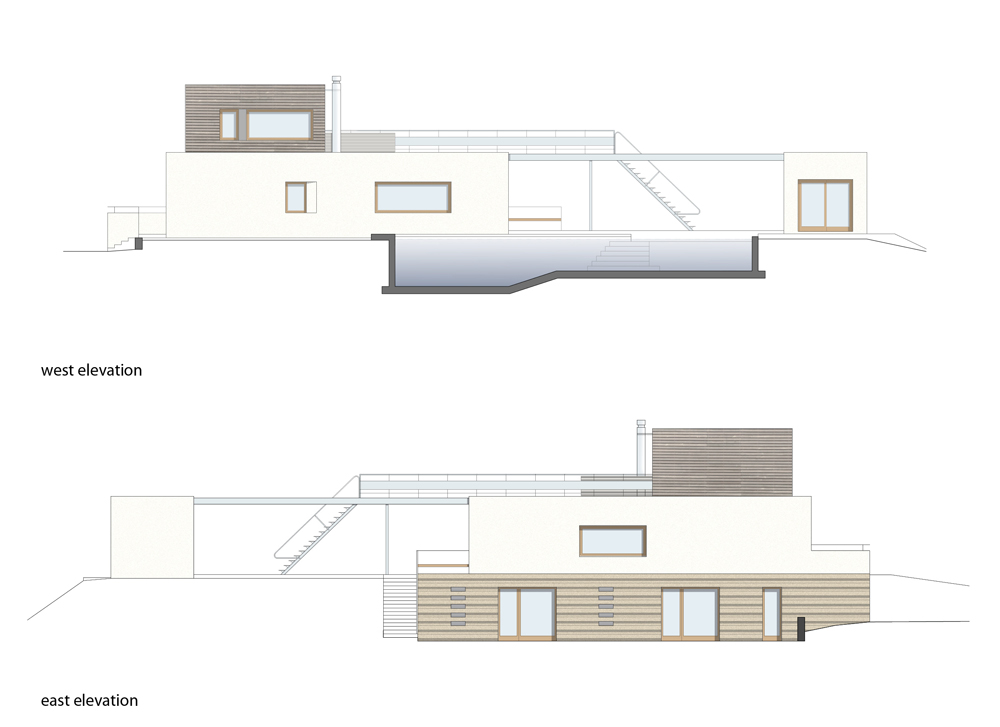

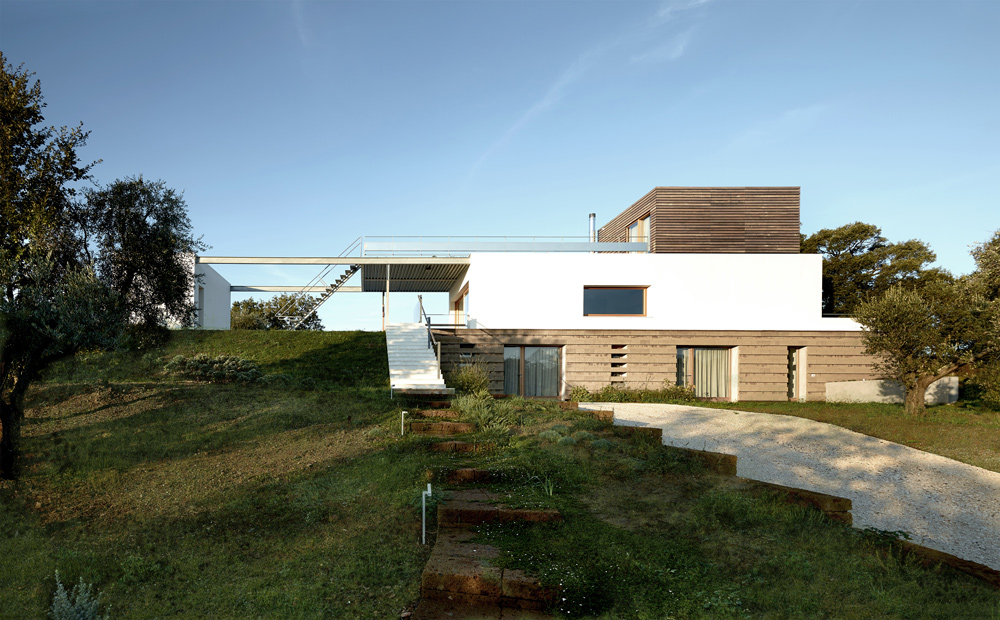

The bottom layer, partially underground, houses the bedrooms and the mechanicals. The only façade, which faces east, is sheathed in rows of tufa blocks quarried in the area. This level represents the base of the house rooted in the soil, recalling the centuries-old local building tradition centered around the use of tufa stone.

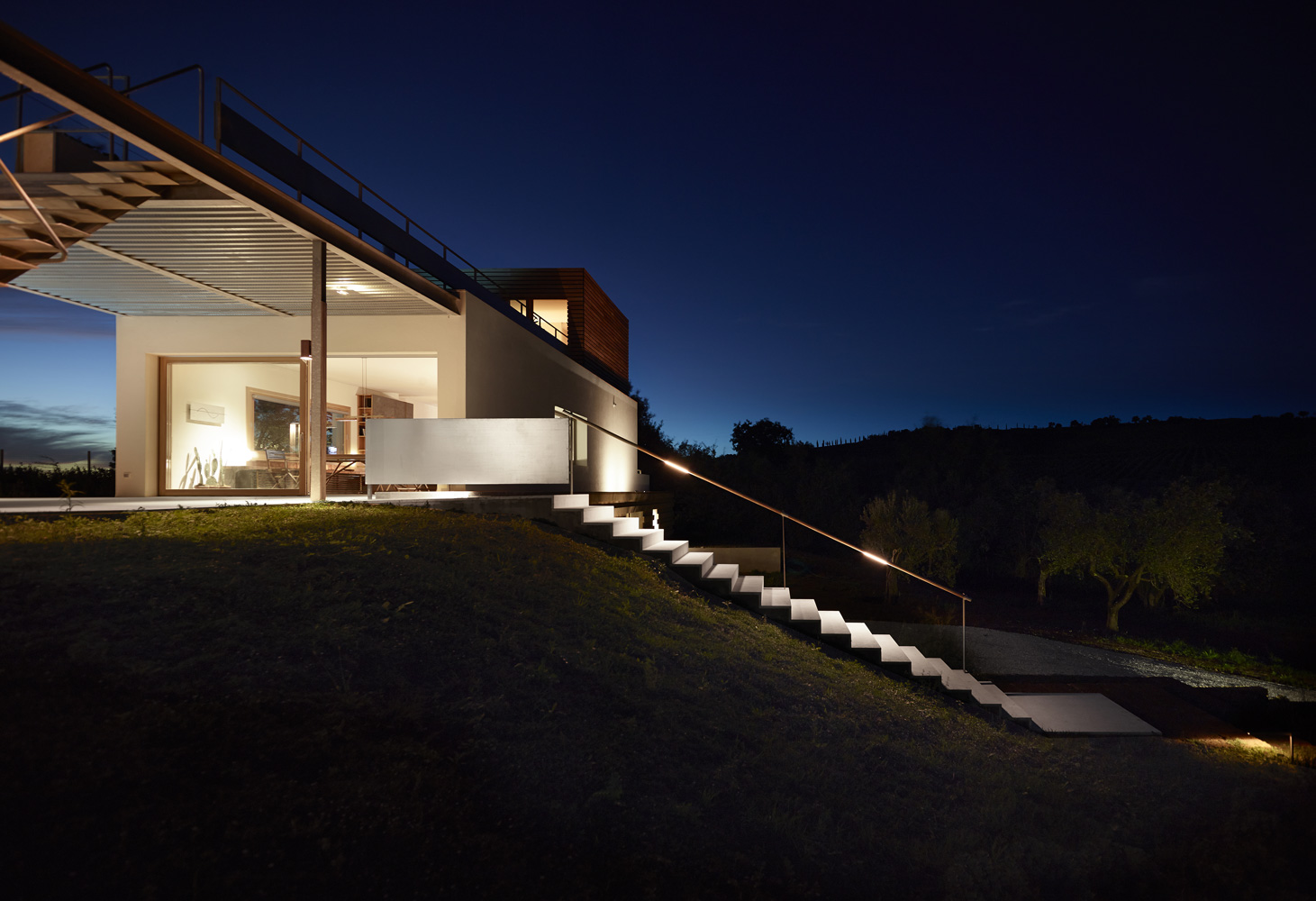

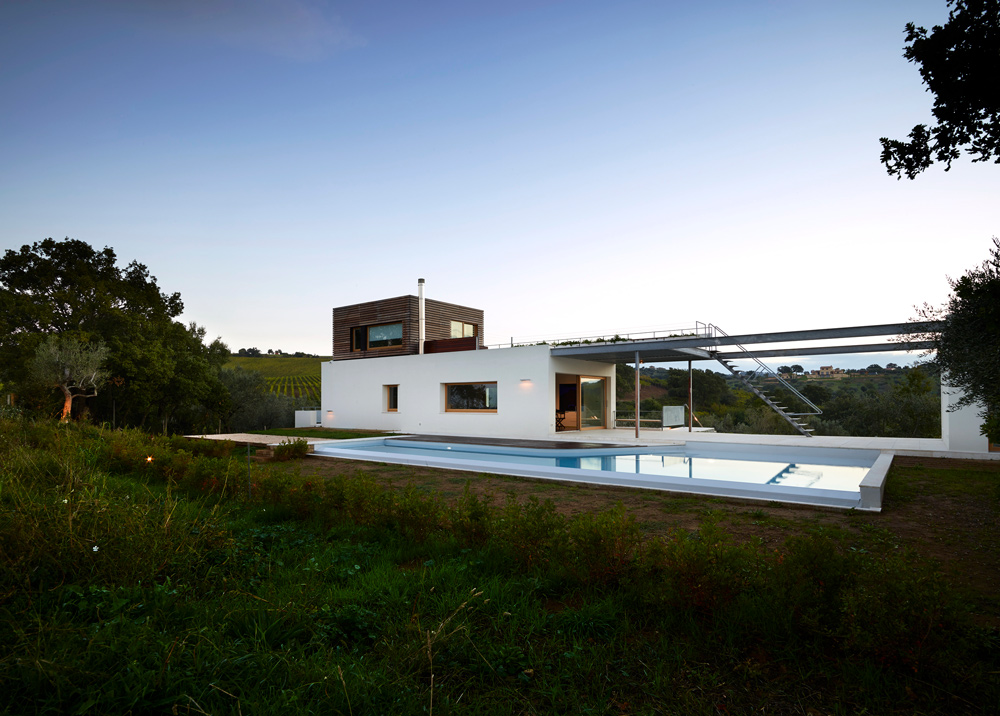

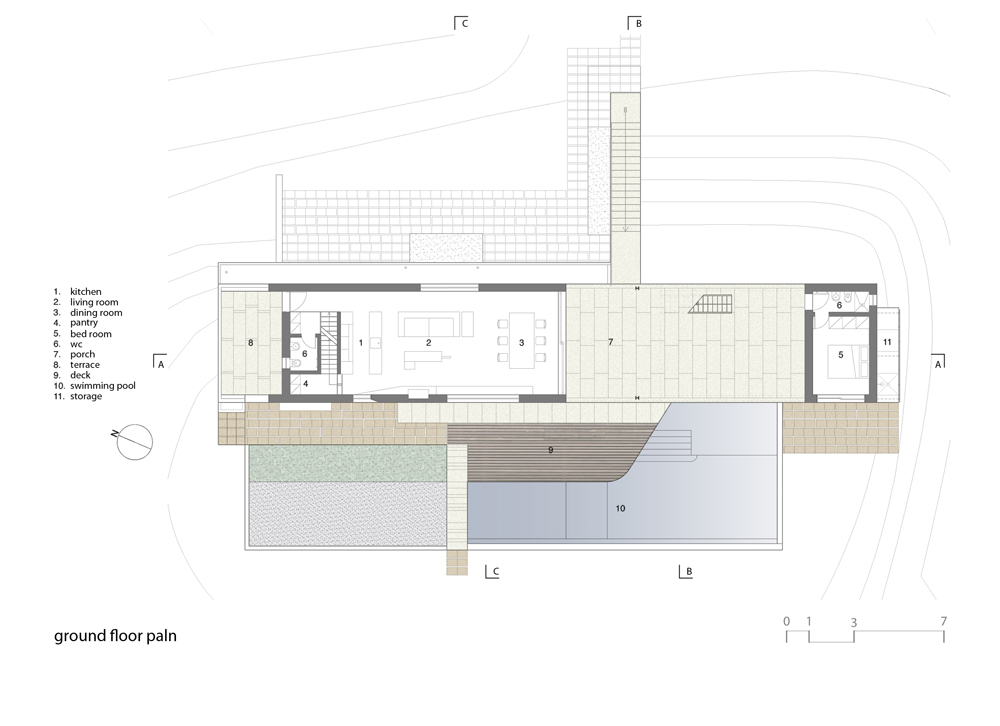

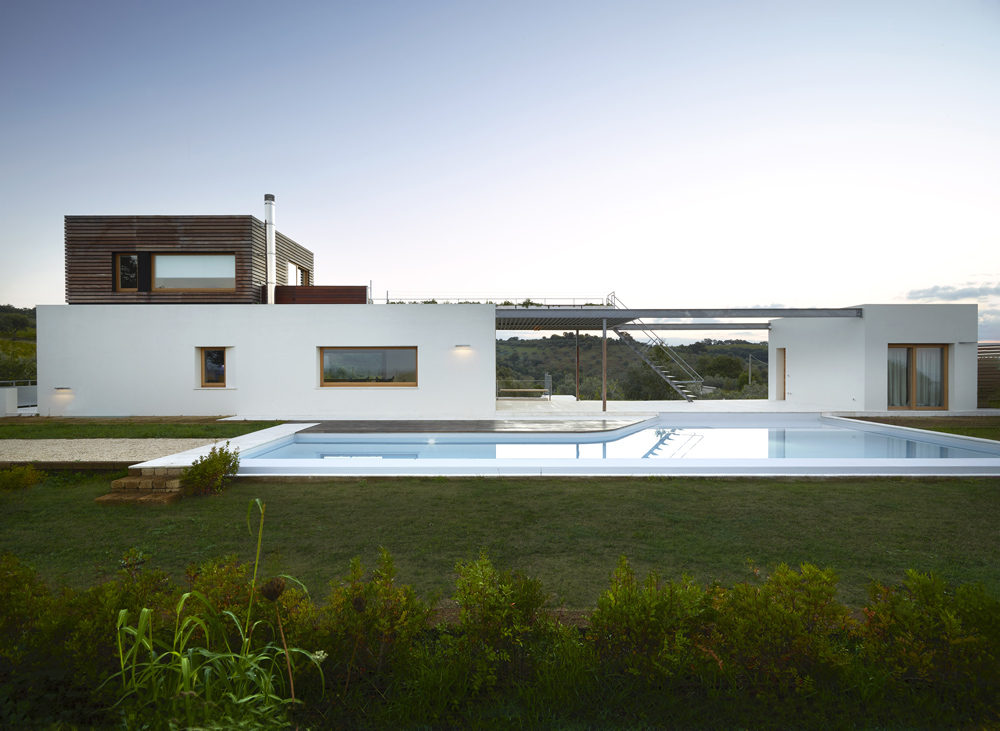

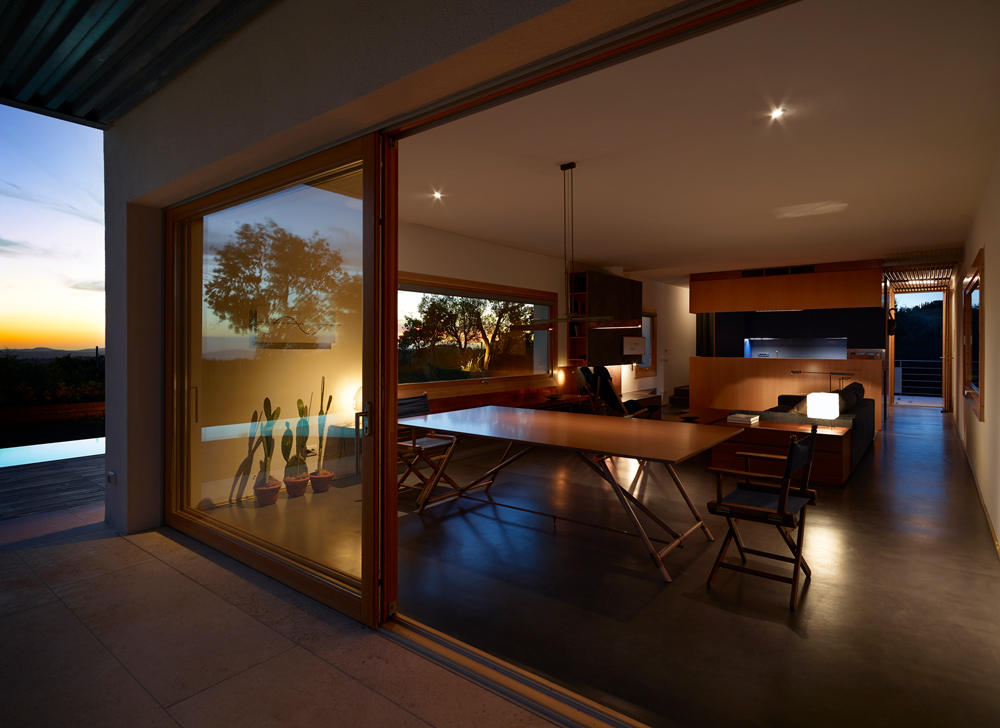

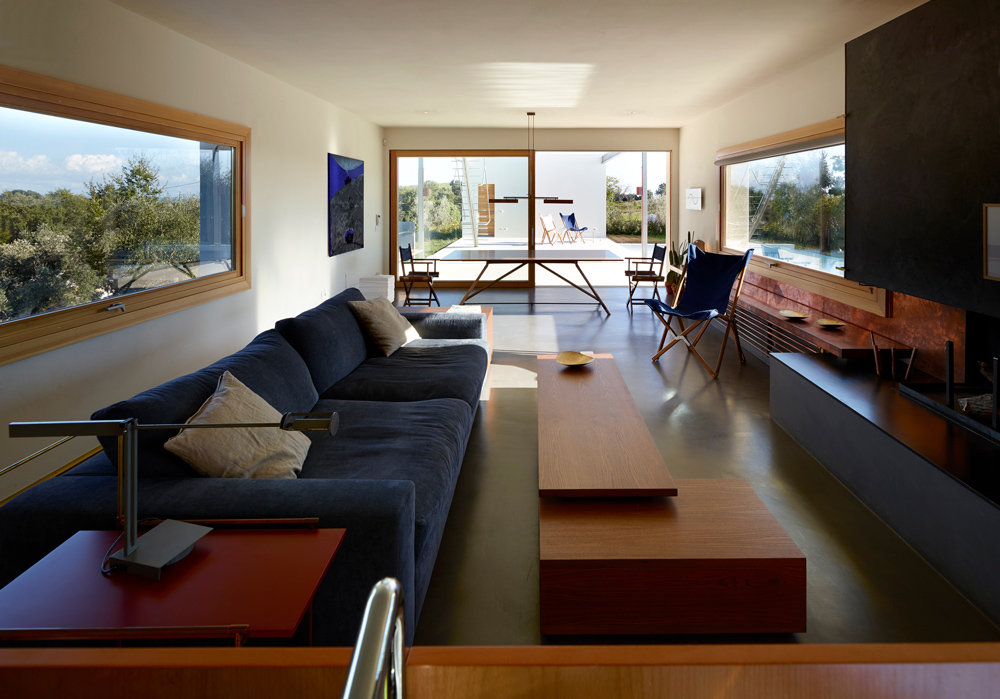

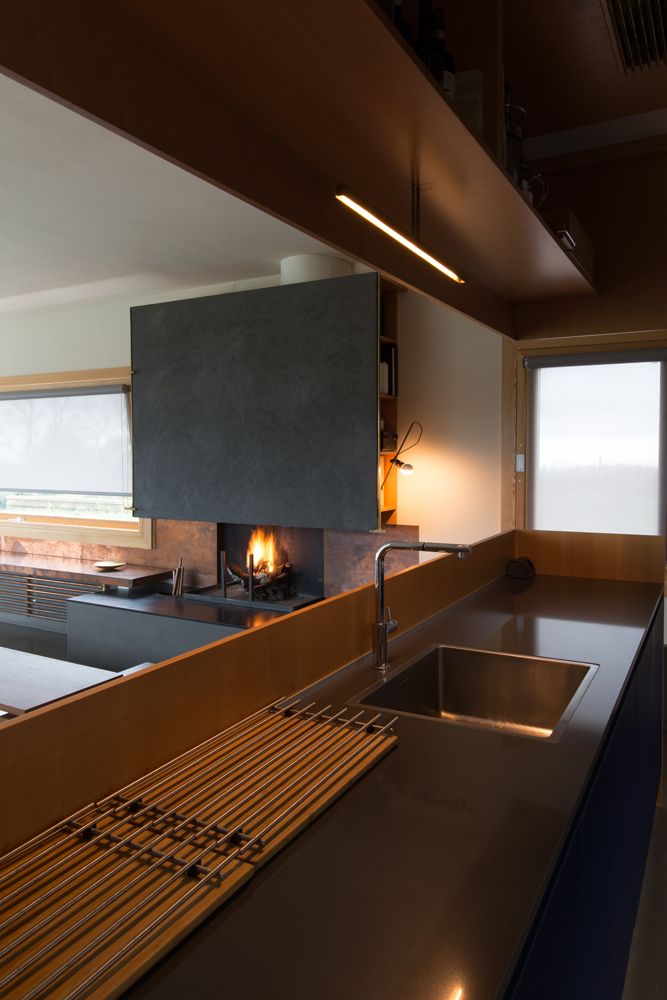

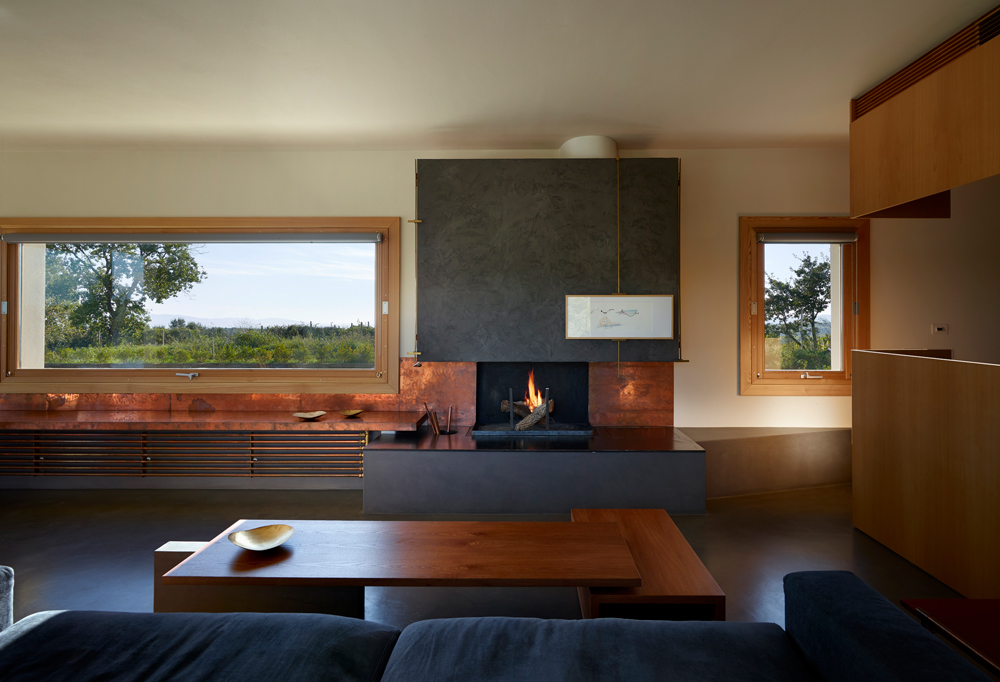

The middle floor, accessed via an outside travertine staircase, contains the common areas of the living room and kitchen, which open onto a porch right next to the pool. The whitewashed stucco facades and the predominance of massive walls over the voids of the windows and doors are inspired by typical Mediterranean architecture.

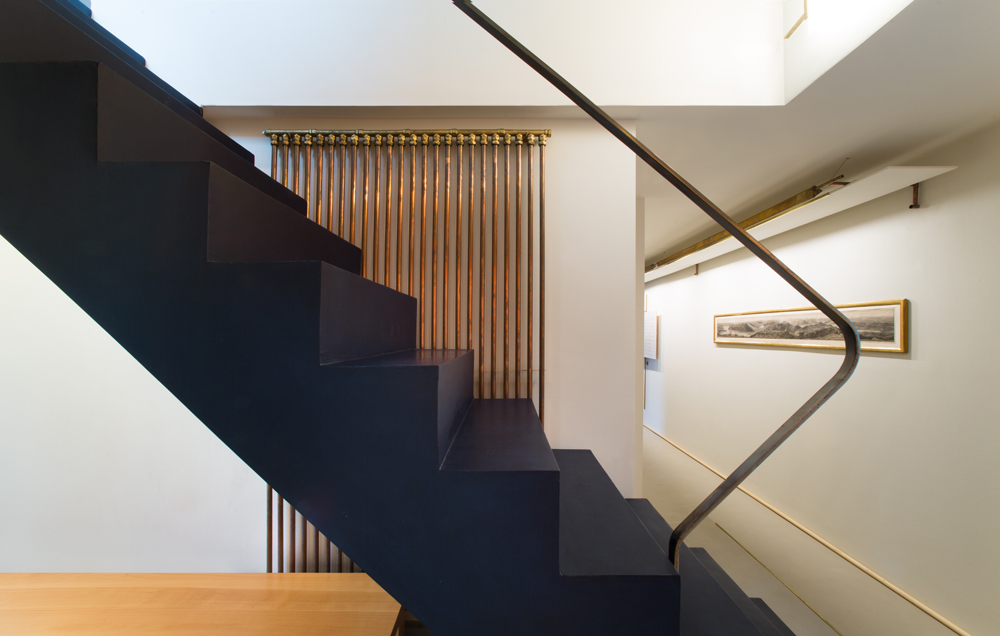

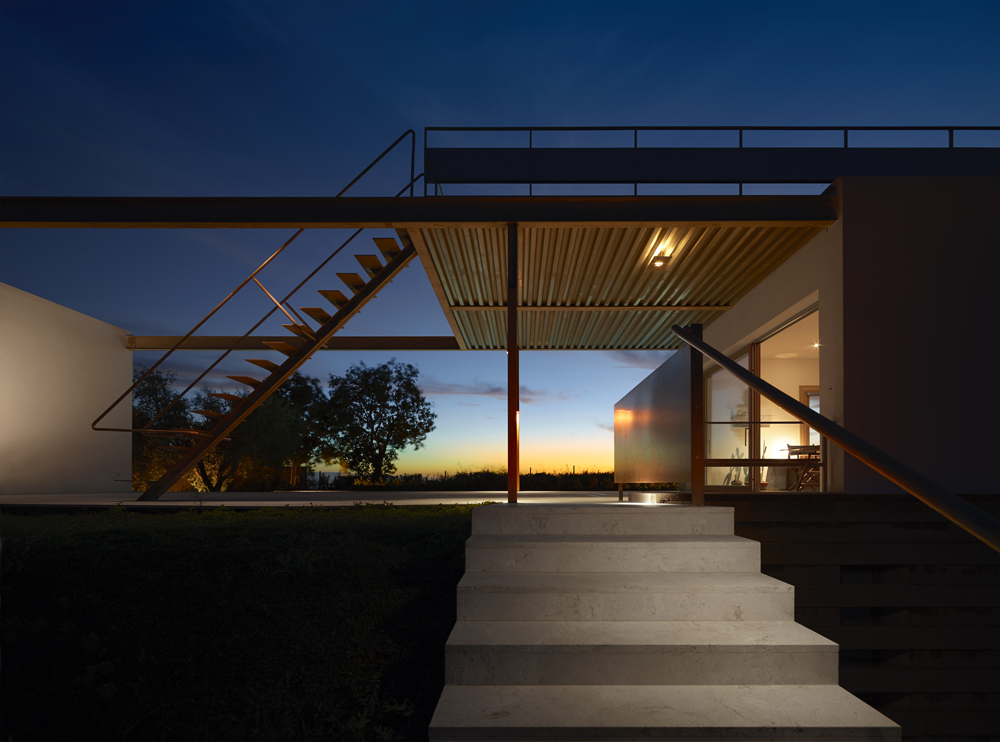

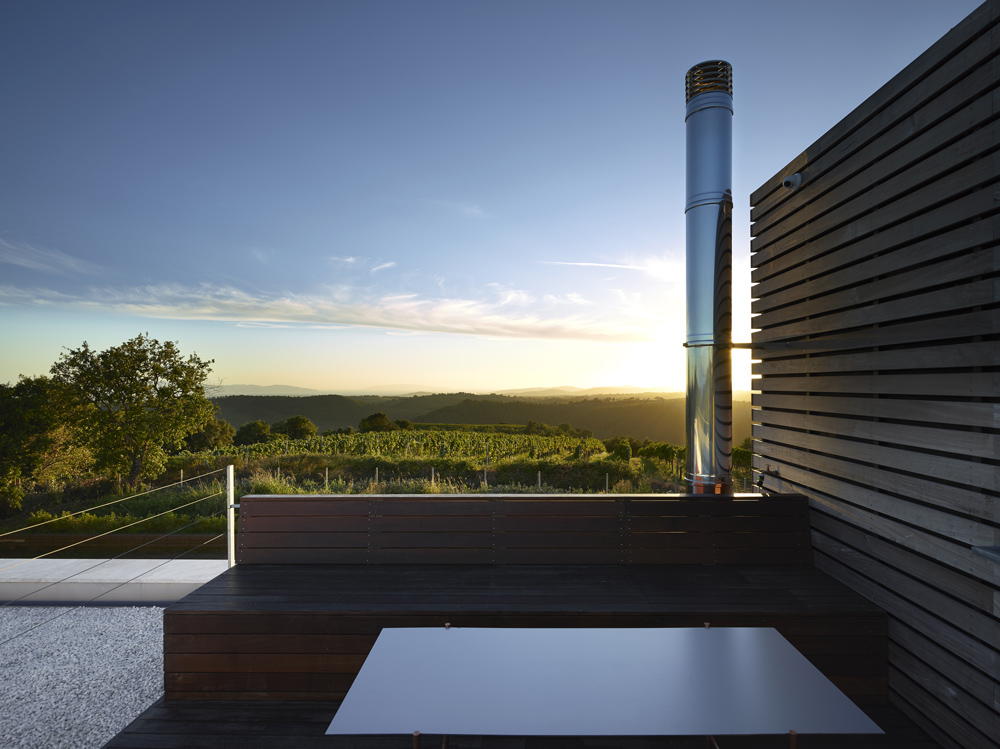

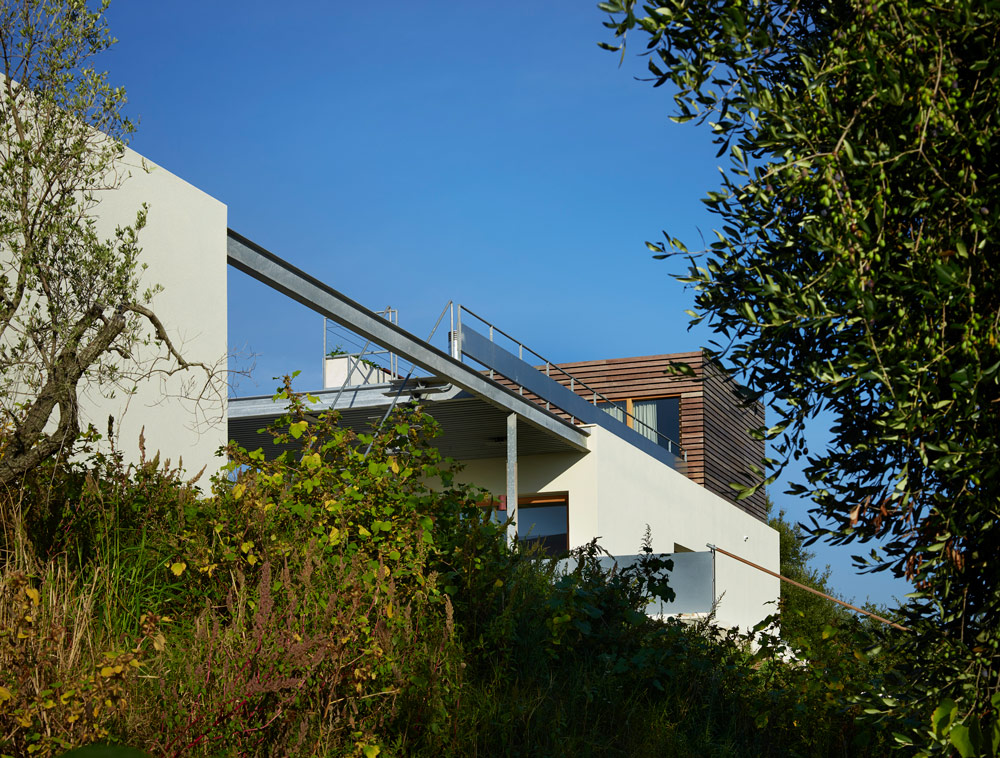

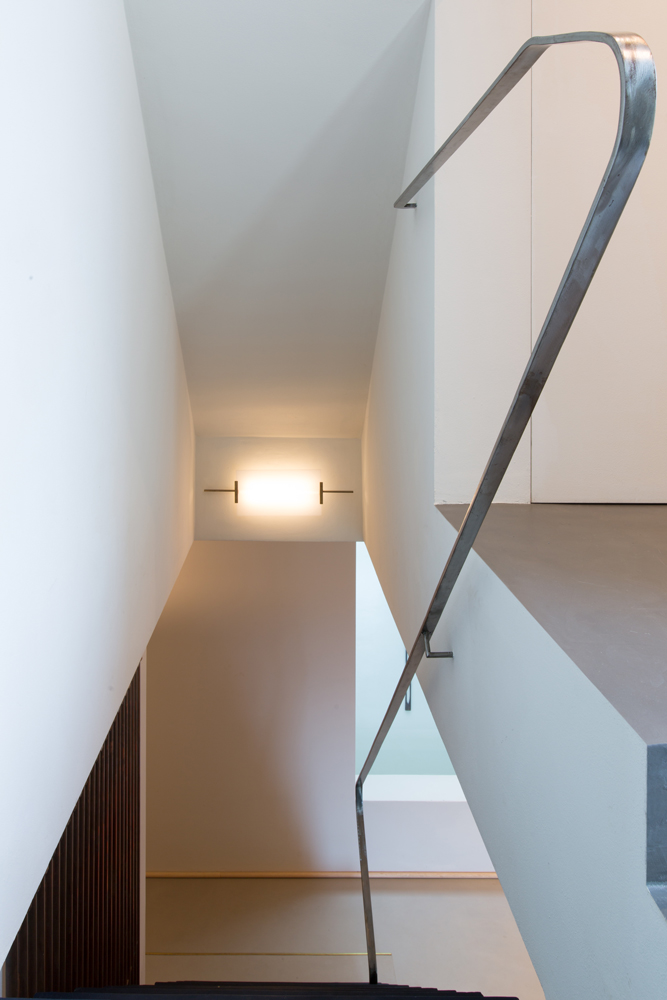

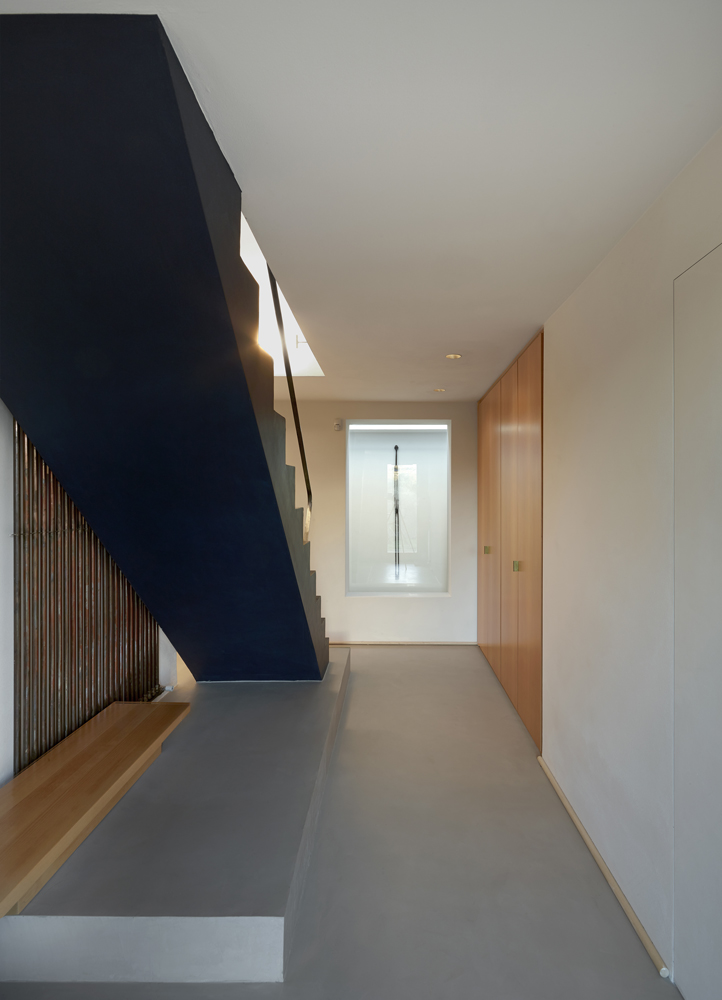

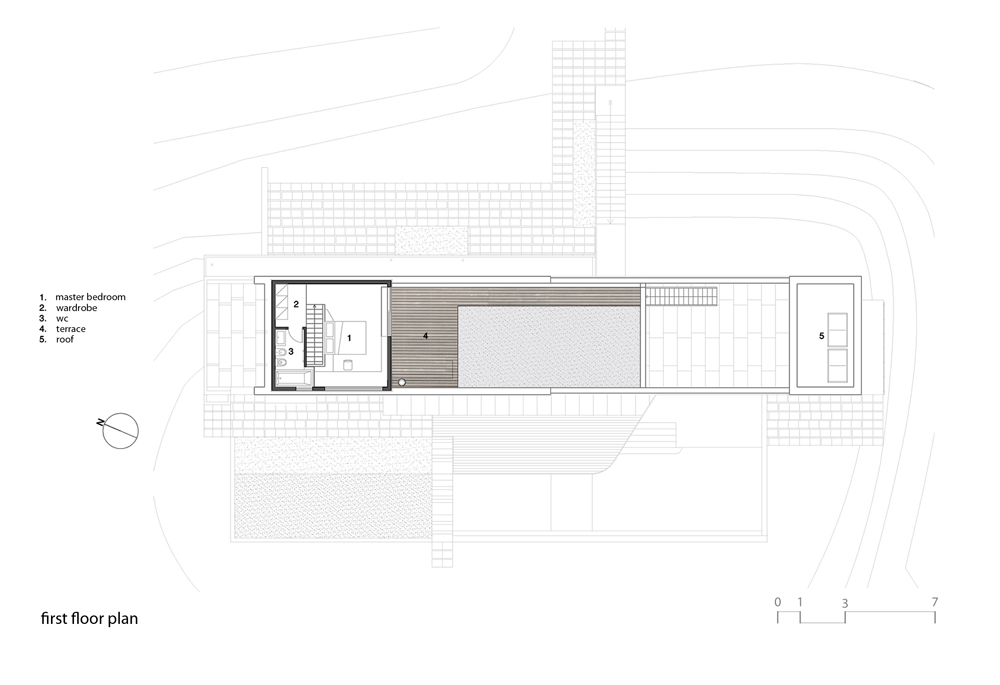

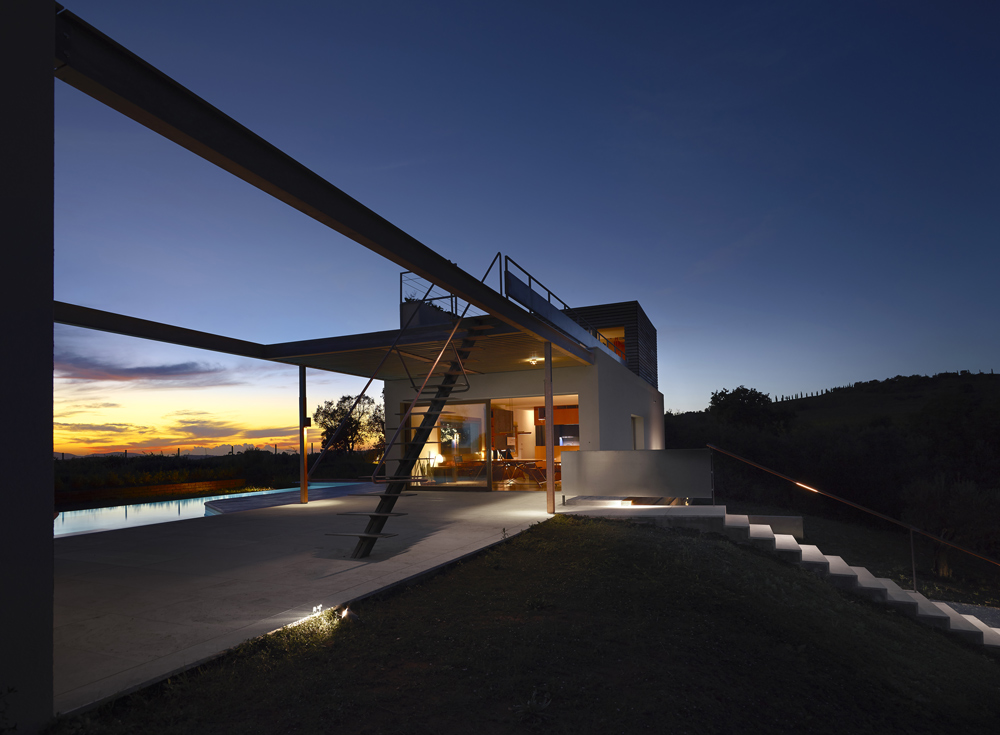

Metal steps lead from the porch to the upper terrace, which gives onto the master bedroom. The bedroom can also be reached by an interior concrete staircase directly from the living room. Sheathed in wooden planks, the top floor evokes nautical architecture, making the entire house resemble by analogy the shape of a ship run aground.

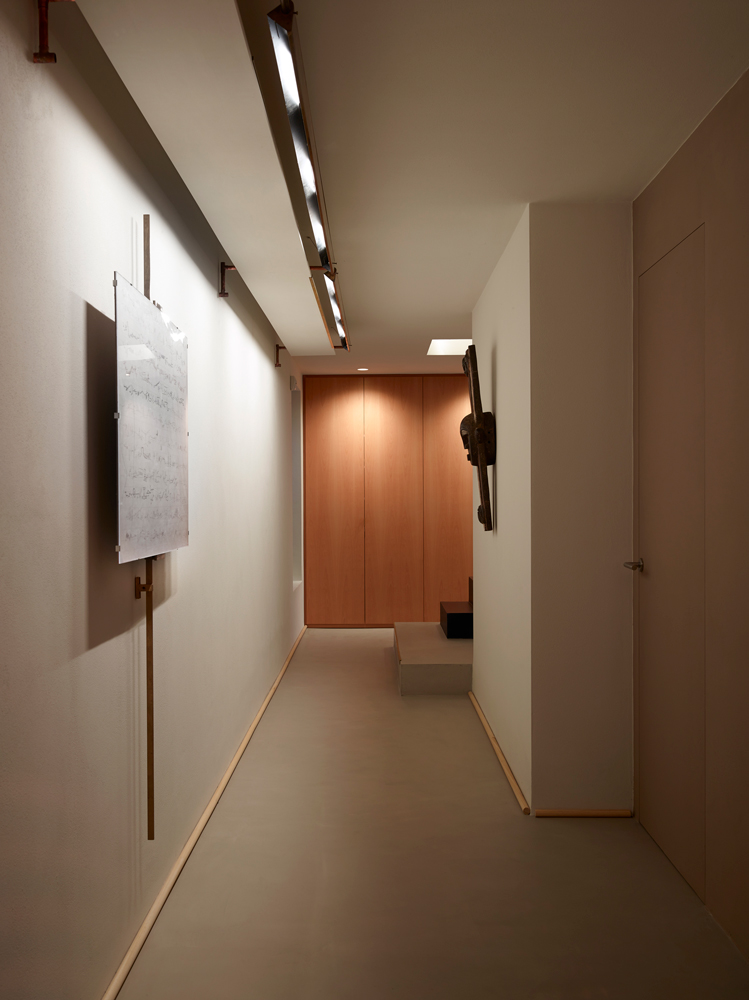

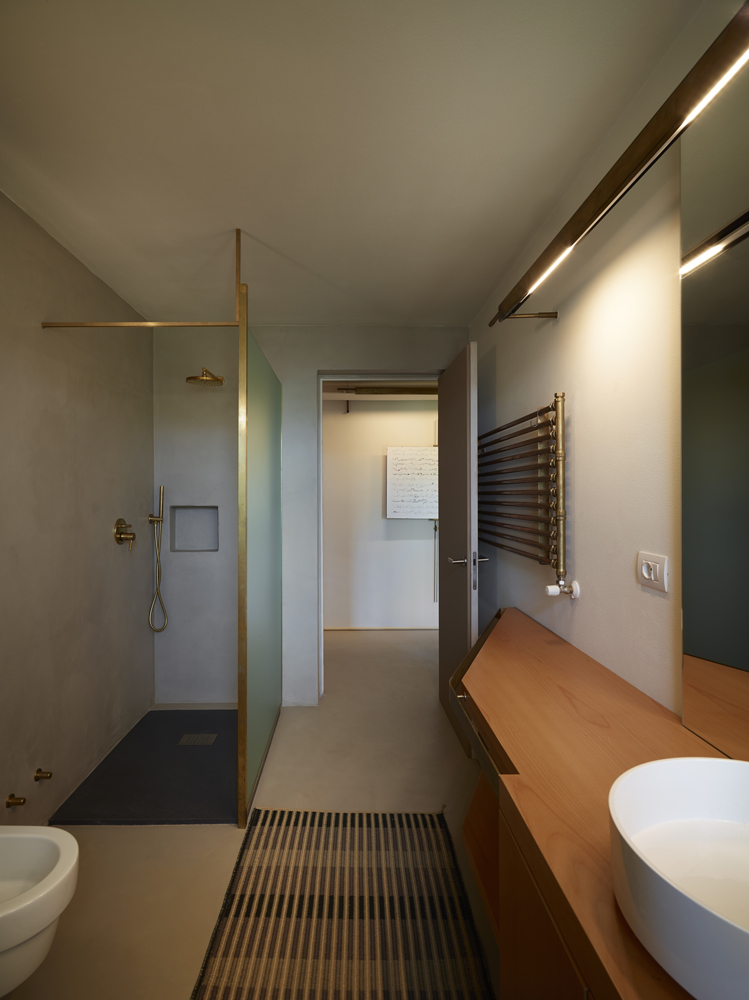

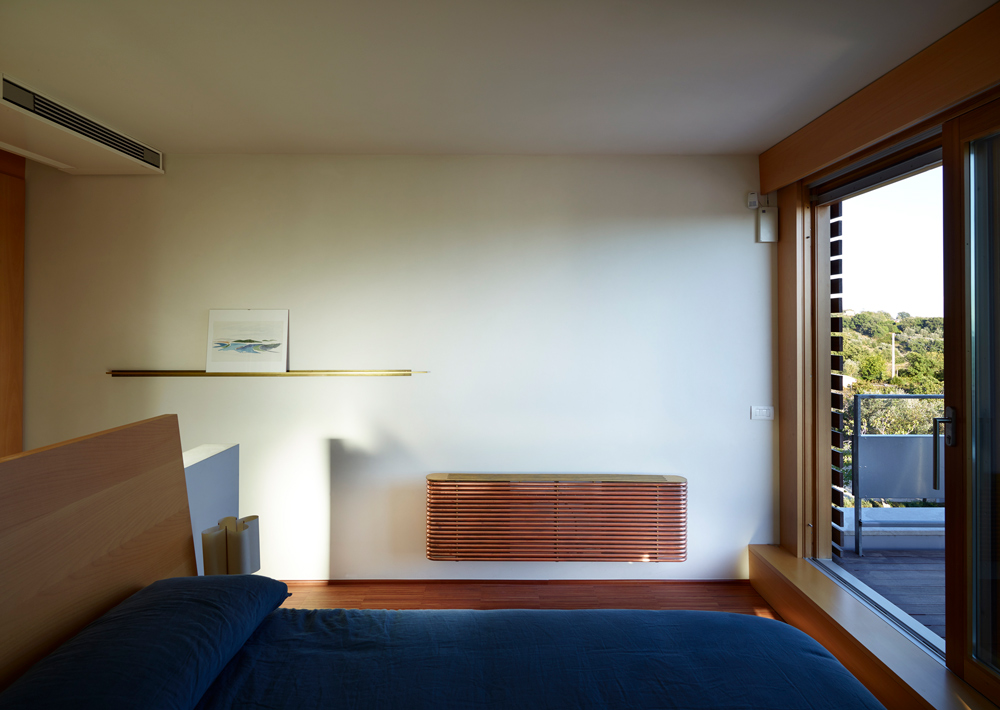

Steps, railings, beams, and exterior decks are made of galvanized steel. By contrast, all the metal elements used on the interior – furnishing accents, lamps and light fixtures, and the floor baseboard – are brass or copper. The radiators, custom designed by the architect, are also made of copper.
Cabinet makers: Bocini&Bocini srl
Horizontal metaphors amidst an archaic landscape
Published in Urlaubs Architektur, August, 2017
The Maremma, the unspoilt, wild south of Tuscany is a hidden gem. Timeless rural landscapes take your breath away, magic little hill towns of Etruscan origin sit on majestic tufa rocks and fragrant pine woods along the coastline frame endless, sandy beaches. Just the right setting for a holiday house that captures the very essence of this region and translates it into architecture: The Maremma House.
The beginnings
We are a father and son who run an architecture and design firm, Studio Ponsi. Some years ago – after a careful examination of the financial feasibility, we decided to build a holiday home for our family, either by converting an existing structure or building a new one from scratch. There were just a couple of deal breakers: the site must be no more than a couple of hours from Florence, and as close as possible to the sea.
We spent two years exploring the length and breadth of the Tuscan coast, visiting little apartments with terraces right on the water, villas badly in need of a makeover, farm outbuildings tucked away in secluded valleys, and total ruins. We decided we could not build a new house because of the strict planning rules for buildings close to the water, so we looked a little further inland. We discovered the Maremma region, and looked for a vacant plot in a tranquil location with a sea view.
We find the land...
The site we chose belonged to a local real-estate agent. It was a field of about half a hectare, tucked away in the hills, close to the two untouched mediaeval villages of Magliano in Toscana and Pereta. It was breathtakingly beautiful, with an uninterrupted view of vineyards, olive groves and rows of cypresses, and with the sea, Monte Argentario and Isola del Giglio in the distance. And it was utterly quiet.
One of the site’s most unusual and desirable features was a purely bureaucratic one: it already had planning permission, and a design for a very traditional building by a local surveyor. This unique opportunity came because of the rules on building in areas of outstanding natural beauty. We asked the local planning department whether we could change the design to suit our more modern tastes. They said yes, so we immediately bought the plot.
A few months later, when the design was almost ready, the building department of the local administration made us an offer. They owned a derelict concrete slaughterhouse in the historic centre of nearby Pereta, and wanted to get shot of it. If we bought it at auction, and demolished it at our own expense, they would allow us to increase the area of our home by that of the slaughterhouse. We accepted with alacrity.
Plans and ideas

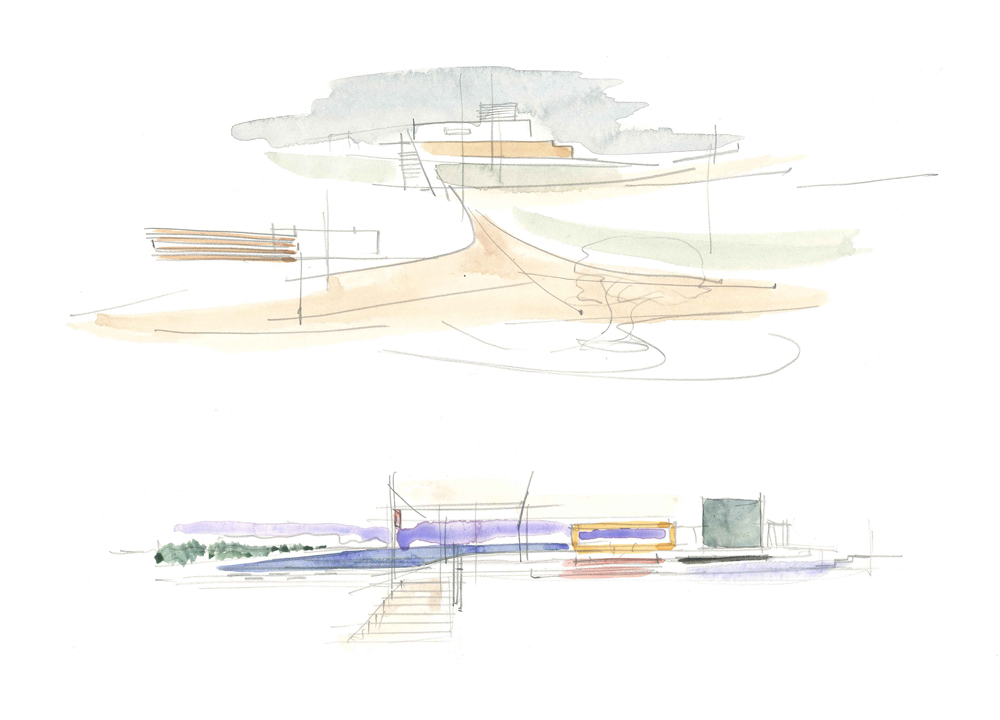

The design obviously had to comply with local rules on things like surface areas, building heights, and excavations, but much of it was the result of observing the surrounding landscape. The lines and volumes of the house reflect the strong horizontals of the hills and the sea.
The terraces, loggias and windows were designed to frame the views, funnel the sea breezes, and create an interplay of light and shadow. Our intention was to capture the dominating horizontals of the landscape and translate them into architectural elements of the house. So we designed a house in three layers, each reflecting one characteristic of the site.
The ground level, clad in blocks of tufa from local quarries, is physically and symbolically rooted in the soil and history of the Maremma. The central floor echoes typical Mediterranean architecture, with flat roofs, white plaster walls and small windows. The upper level is a kind of cabin, covered in wooden boards and emphasising the building’s proximity to the sea, an effect enhanced by nautically themed details such as balusters, flights of steps, and poles.
Construction begins
Once we had completed the drawings and obtained the permits we needed, we contracted out the construction to a local firm with the unlikely name of I Tenebrosi, meaning the tall, dark and handsome guys. The plumber, electrician, parquet installer and metalworker all came from the very civilised little village of Magliano in Toscana.
It was a good choice: they were reliable and conscientious, and managed to overcome many unfamiliar challenges. The plumber had a real passion for his work, making some unusual radiators and some tubular steel banisters; the electrician and the metal fabricator made the galvanised outside lamps and illuminated handrails for the stairs, all to our designs. The deck installer also built a ventilated wall, a first for him.
Two years on, we still believe we made the right decision. We are friends with them all, and they still help us with occasional maintenance.
Geologist or water diviner?
The construction went on for about a year without any particular problems. There was mains water available, but we weren’t allowed to use it to irrigate the garden or fill the swimming pool. When we started work, we brought in a water diviner, who walked round the site with his dowsing rod and declared that there was no underground water.
Two years later, when the building was finished, we decided to review the situation. This time we asked a geologist to find out whether there was an aquifer. He quoted us for some €2,000 for a preliminary survey using probes and other instruments, but could not guarantee that there would be water.
We were just about to give him the job, but then the gardener told us about another highly respected diviner who would give us a consultation for a very reasonable €50. We agreed. The next day he got out of his van, took a few steps and pointed at the ground saying, in a throwaway manner, “There’s water right here”. Then he swung a pendulum over the spot, walked a few more paces back and forth, and added, “It’s sixty metres deep”.
We were a bit sceptical, but we decided to believe him. The following week, we brought in a specialist drilling company. Exactly at that point, and sixty metres below the surface, they found a magnificent water source that would give us a well yielding two litres a second.
Landscaping
Having access to water meant we could take a more relaxed attitude towards landscaping and choosing the right plants for the conditions. We designed it ourselves, though we took advice from a local nursery owner.

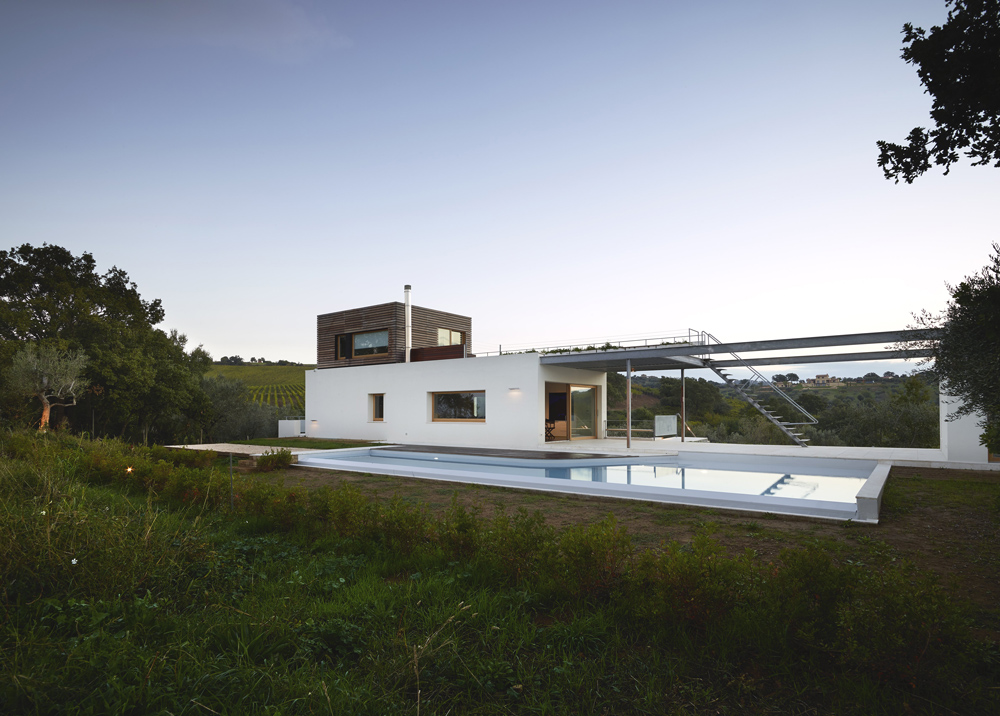

As you might expect, we are very happy with our house. Although it is not particularly huge, it is big enough for a reasonable number of people, with a variety of private and shared spaces and routes around the building. Just as it has terraces, loggias, steps, and indoor and outdoor spaces for different uses, so the pool is divided into specific areas. The “beach” is particularly suitable for children, with only a few centimetres of water; the central section is 1.4 metres deep, and the deepest part lets you swim 15-metre lengths.
The pool reflects the vast sky, which extends from the mountains to the sea’s horizon. The sky and clouds are major features of the landscape, adequately framed by the architecture of the house. The terraces, patios and loggias on three levels provide further vantage
points from which to enjoy the beauty of the surroundings as they evolve with the seasons.
Not just a house, but a laboratory
Maremma House, as we call it, is a laboratory, in a constant state of flux as we experiment with new furnishings, finishes, colours, and landscaping. Although it is built to last, we have designed it as a living organism with its own skeleton, skin, and internal organs.
We also like to compare it to a ship, with the hills of the Maremma as the waves. Not literally, because it does not look like an oceangoing vessel, but it does have long straight lines and volumes, wooden bridges, metal staircases and a timber-clad deck cabin, and we never tire of keeping watch over the sky and the islands on the horizon.
